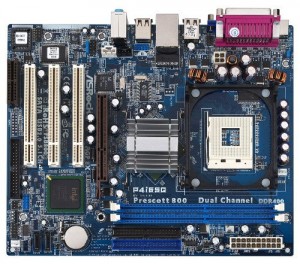

Motherboard ASRock P4i65G

Product Specifications

 General
CPU – Socket 478 for Intel® Pentium 4 / Celeron D (Prescott, Northwood, Willamette) processors
– FSB 800/533/400MHz
– Supports Hyper-Threading Technology
– Supports Untied Overclocking Technology
Chipset – Northbridge: Intel® 865G
– Southbridge: Intel® ICH5
Memory – Dual Channel DDR memory technology
– 2 x DDR DIMM slots
– Supports DDR400/333/266 non-ECC, un-buffered memory
– Max. capacity of system memory: 2GB
BIOS – 4Mb AMI BIOS
– AMI Legal BIOS
– Supports “Plug and Play”
– ACPI 1.1 Compliance Wake Up Events
– Supports Jumperfree
– SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics – Integrated Intel® Extreme Graphics 2
– DirectX 8.0
– Max. shared memory 96MB
Audio – Cmedia 9761A 5.1 channel audio CODEC
LAN – Realtek PCI LAN 8101L
– Speed: 10/100 Ethernet
– Supports Wake-On-LAN
– Supports PXE
 Expansion / Connectivity
Slots – 3 x PCI slots
– 1 x AGP 8X slot
– 1 x AMR slot
Connector – 2 x SATA 1.5 Gb/s connectors (No Support for “RAID” and “Hot Plug” functions )
– 2 x ATA100 IDE connectors (support 4 x IDE devices)
– 1 x Floppy connector
– 1 x IR header
– 1 x COM header
– CPU/Chassis FAN connectors
– 20 pin ATX power connector
– 4 pin 12V power connector
– CD in header
– AUX in header
– Front panel audio connector
– 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)
Rear Panel I/O ASRock I/O Plus
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x VGA Port
– 1 x Parallel Port (ECP/EPP support)
– 6 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Port
– Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature Hybrid Booster:
– CPU Frequency Stepless Control
– ASRock U-COP
– Boot Failure Guard (B.F.G.)
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories – Quick Installation Guide, I/O Shield
– Floppy/ATA 100 Cables
– 1 x SATA Data Cable
– 1 x SATA 1 to 1 Power Cable
– 1 x COM Port Bracket
– 1 x AMR card (optional)
Hardware Monitor – CPU Temperature Sensing
– Chassis Temperature Sensing
– CPU Overheat Shutdown to Protect CPU Life
– CPU Fan Tachometer
– Chassis Fan Tachometer
– Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor – Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
OS – Microsoft® Windows® 98SE / ME / 2000 / XP compliant
Certifications – FCC, CE, WHQL
